Precision-engineered architectural casement solutions certified for global hurricane, energy, and acoustic performance standards.
Integrating advanced European structural engineering with high-capacity Chinese manufacturing resilience.
Every architectural casement system manufactured by Shandong OptiDoors undergoes physical mock-up testing for water penetration, structural wind-load deflection, and air infiltration. By enforcing 100% trace-ability on 6063-T5 structural aluminum extrusions and Technoform polyamide thermal strips, we ensure project-level engineering compliance with NFRC, AS2047, and Miami-Dade NOA protocols.
The science behind energy-efficient U-factors, structural load resistance, and acoustic dampening.
| Engineering Parameter | Standard Specification | High-Performance / Coastal Grade | Testing & Compliance Standard |
|---|---|---|---|
| Profile Alloy & Temper | Architectural Grade 6063-T5 | Structural High-Tensile 6060-T66 / 6063-T6 | GB/T 5237, ASTM B221 |
| Thermal Barrier Strip | 14.8mm PA66 GF25 Polyamide | 24mm - 34mm Technoform Multi-Cavity Insulated Strip | EN 14024, ISO 18868 |
| Thermal Transmittance (U-Factor) | 1.8 - 2.2 W/m²K (0.32 Btu/h·ft²·°F) | 0.8 - 1.2 W/m²K (0.14 - 0.21 Btu/h·ft²·°F) | NFRC 100/200, ISO 10077-2 |
| Acoustic Insulation (STC / OITC) | STC 32 - 35 dB (Double Glazed) | STC 42 - 48 dB (Triple Laminated Acoustic IGUs) | ASTM E90, ASTM E1425 |
| Structural Wind Load Resistance | 2500 Pa (Design Pressure DP50) | 5000+ Pa (HVHZ Hurricane DP100 / NOA Grade) | TAS 201/202/203, AS2047, EN 12210 |
| Water Penetration Resistance | 450 Pa static pressure | 700 - 1000 Pa cyclic pressure | ASTM E331, AS4420.2, EN 12208 |
Utilizes dynamic pressure equalization chambers and continuous EPDM perimeter gaskets to prevent rainwater capillary draw even under wind-driven storm forces.
Integrated stainless steel 304 mushroom-head locking cams lock into heavy-duty frame keepers at multiple perimeter points, driving elevated forced-entry resistance.
Protected by Qualicoat-certified fluorocarbon (PVDF) coatings or architectural powder coating, maintaining 10+ year gloss retention in aggressive salt-fog coastal zones.
End-to-end controlled fabrication: From high-speed aluminum cutting to robotic sealant application.
Profile Cutting
Precision Drilling
Gauze Installation
Cleaning Glass
Glass Installation
Automated Gluing
Frame Connection
Protective Packing
Final Testing
Aluminum Cutting Machine
Fully Automatic Laser Cutting Machine
Glue Strip Assemblying Machine
Aluminum Drilling Machine
In-house structural, wind load, air tightness, and water tightness validation chambers.
Air Tightness Testing
Installation Testing
Water Tightness Testing
Wind Resistance Testing
Air Tightness Tester
Installation Testing Machine
Water Tightness Tester
Wind Resistance Testing Machine
Continuous thermal simulation, finite element modeling, and specialized cavity innovation.
CAD Drawing Development
Profile Cavity R&D
R&D Personnel Discussion
Air Tightness Tester Calibration
Installation Structural Testing
Water Tightness Verification
Wind Resistance Validation
Custom-engineered aluminum casement configurations tailored for diverse international structural codes and climactic forces.

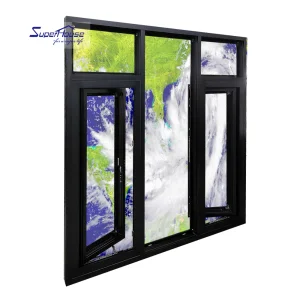

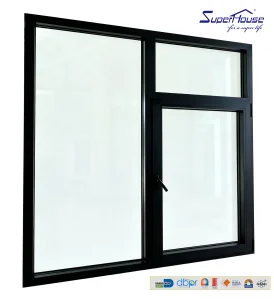

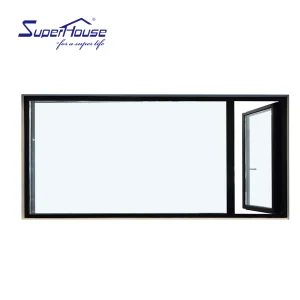

In coastal regions like Florida, the Caribbean, and Australia’s cyclone corridors, casement windows must withstand extreme wind-driven debris and pressure fluctuations. Our Miami-Dade NOA certified casements feature heavy-gauge SGP laminated safety glass, heavy-duty 304 stainless steel friction hinges, and multi-point corner locks engineered to absorb cyclic pressures exceeding 5000 Pa.
In Northern Europe, Canada, and Central Asian high-altitude regions, minimizing conductive heat loss is essential. Utilizing 34mm multi-chambered polyamide thermal breaks paired with triple-pane Low-E Argon-filled IGUs, OptiDoors casements achieve U-factors down to 0.8 W/m²K, eliminating condensation build-up and lowering HVAC heating loads by up to 35%.
Metropolitan projects demand high sound transmission class (STC) ratings to block city traffic noise while providing airtight seals against urban smog. Our asymmetrical double-laminated glazing units combined with continuous EPDM triple gaskets achieve acoustic attenuation up to STC 48 dB, turning city apartments into tranquil living spaces.
Leveraging Shandong's industrial aluminum cluster for rapid scaling and global delivery guarantees.
By partnering with 380 localized supply chain vendors, raw aluminum extrusion profiles can be customized, die-extruded, and delivered to our fabrication workshop within 7 days, reducing overall project lead times by 40% compared to Western manufacturers.
Our 8,200 m² factory layout features modular assembly tracks that seamlessly transition from small-batch luxury residential custom orders to thousand-unit commercial developer contracts without sacrificing dimension accuracy or QA oversight.
Pioneering smart fenestration integration, ultra-low carbon footprint extrusion, and electrochromic glass technology.

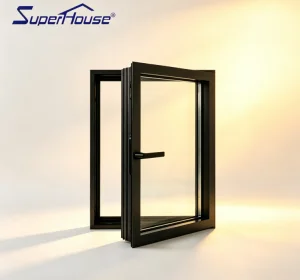

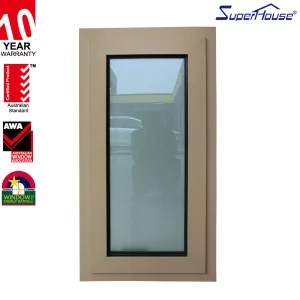

Standardization of PA66 GF25 thermal breaks across all residential casement series, achieving compliance with California Title 24 and AS2047 energy codes.
Embedding concealed automated chain actuators, rain-sensing auto-closure modules, and smart home automation compatibility (Zigbee / Matter protocol).
Integrating Building-Integrated Photovoltaic (BIPV) spandrel glass and electrochromic PDLC privacy tinting glass into structural casement systems.
Transitioning to 100% recycled green aluminum extrusions and closed-loop solar-powered factory operations to minimize embodied carbon.
In-depth responses for architectural specifiers, structural engineers, and global importers.

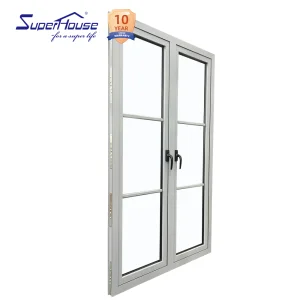

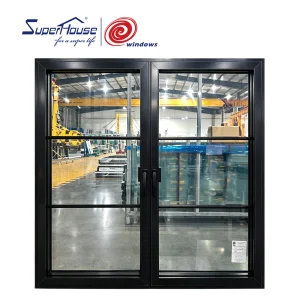

Explore our full line of thermal break, hurricane impact, and custom builder casement window units.
